LID PLACERS & CLOSERS
Product information, media, and
support guides
The HEISLER Lid Placers and Closers are designed to dispense, position and seal lids on filled containers.
HEISLER® Lid Placers and Closers are available in many different models for plastic and metal containers of any size and shape, such as: Pails, Trays, Bins, Cans, Buckets, Totes, Tubs, Crates, Kits, and more.
Lid Placing & Closing Systems
AUTOMATIC LID PLACERS
& CLOSERS / CRIMPERS
Our Lid Placers can dispense up to 40 lids per minute.
These machines come in fixed or adjustable models. For lids that require orienting, the Lid Placer can be equipped to orient a spout in relation to the handle.
Closer options include automatic roller closers, crimpers, and screw-type.
SEMI-AUTOMATIC
OPTIONS
HEISLER also offers a line of semi-automatic options, designed to be compact in a modular and economical package for your specific needs if a fully automatic solution is not warranted.
These options include stand-alone closers, or stand-alone lid placers.
MANUAL
CLOSERS
Our manual lid presses come in models for both plastic and metal containers.
A lid is placed on the container, which has been manually positioned under the press plate or crimper. Two buttons are then pressed simultaneously and a pneumatic cylinder activates the press plate or the crimper to close the container. Releasing one or both of the buttons, shifts the flow, causing the cylinder to retract.
Available options are stainless steel, castors, conveyor, and the ability to close both plastic and metal lids on one machine.
Products
Lid Placing & Closing systems offered by Heisler Industries
P100 Automatic
Lid Placer & Closer
In this model, stacks of lids are placed and fed along a low level in-feed conveyor to an elevator where they are automatically lifted to the separating mechanism and fed down a chute above the pail/product conveyor. Lids are placed on the pails as they pass under the chute and move to the closer where metal lids are crimped and plastic pails are compressed or screwed for secure closure.
The P100 can hold up to 7-8 full stacks of lids and continuously will replenish itself until more lids are needed, offering plenty of continuous operation before reloading is needed.
- Available in fixed size, or adjustable models
- For pails ranging from pints/quarts, to 7 gallon pails, trays, bins, and more
- Speeds up to 40 CPM
- Automatic height adjustment available for quick changeover via HMI display
- Available with optional lid spout orientation
- Stainless steel & washdown options available
- Explosion proof options available
Automatic
Roller Closer
The HEISLER Stand-Alone Roller Closer is designed to automate the manual operation of sealing a plastic lid onto a pail.
This unit accepts pails from upstream equipment with lids already seated on the pail. The lid detector will check the lid is in position over the pail before allowing it to proceed into the closer.
This machine comes complete with upstream and downstream interlocks for line integration
- For pails ranging from 1-7 gallon, trays, bins, and more
- Stainless steel option & washdown (as shown) available
- Explosion proof options available
- Comes standard with a 6′ conveyor, with options to lengthen
- Simple changeover for different sizes
- No lid-detection prior to closing
Semi-Automatic
E-Series Lid Placer
The E-Series Lid Placer is designed to provide a compact solution in a modular and economical package. This unit offers the same outstanding quality and durability as our high-speed machines to those users whose line speeds are usually not more than 10-15 containers per minute.
Lids are manually placed in the vertical hopper, and are fed down into the chute where they are positioned for dispensing onto the container as it passes below.
- For pails ranging from 1-7 gallon, drums, trays, bins, and more
- Speeds up to 30 CPM
- Adjustable height & width feature available
- Designed to straddle an existing conveyor for compactness
- Several closer and conveyor options available upon request
- Stainless steel & washdown options available
Manual
Lid Closers

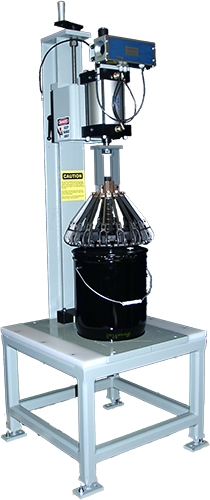

Our Manual Lid Closers come in models for both plastic and metal containers. A lid is placed on the container, which has been manually positioned under the press plate, crimper, or screw-closer. Two buttons are then pressed simultaneously and a pneumatic cylinder activates the press plate or the crimper to close the container. Releasing one or both of the buttons, shifts the flow, causing the cylinder to retract.
- For pails ranging from 1-7 gallon, drums, and more
- Stainless steel options
- Optional conveyors and casters for mobility
- Capable of closing UN-rated lids
- Powered options for adjustable line height, and height adjustability
- Models available for plastic press plates, metal crimpers, and screw-type lids.
Lid Placer Support Guides
ROLLER CLOSER PAIL HEIGHT COMPENSATOR SETUP
- Our new pail height compensator, designed for the proper closing of a difference in height on the same pails, can be set up in just a quick few steps… Read More
