Palletizers & Depalletizers
Product information, media, and
support guides
HEISLER compact Palletizers and De-Palletizers are designed to automatically palletize, or de-palletize containers of various sizes.
With its heavy-duty capability and adjustable features, the HEISLER® Pail Palletizer and De-Palletizer offers flexibility and productive power with various containers including cases, crates, kegs, drums, pails, totes, trays, bins, and many more.
Palletizing & De-Palletizing Systems
AUTOMATIC
PALLETIZERS
With its heavy-duty capability and adjustable features, the HEISLER Palletizer offers flexibility and productive power in palletizing operations. Speeds of up to 25 CPM are standard, and with optional equipment, up to 50 CPM can be achieved.
Our Palletizers can palletize a wide variety of containers such as cases, crates, kegs, drums, pails, totes, trays, bins, and many more often on the same machine due to our adjustability features.
AUTOMATIC
DE-PALLETIZERS
The HEISLER De-Palletizer, designed with reducing labor in mind, is an efficient machine capable of dispensing columns of containers from a pallet.
This unit was designed to automatically feed one of our Denester solutions to separate containers and stage them for filling or labeling.
Products
Denesting Systems offered by HEISLER Industries

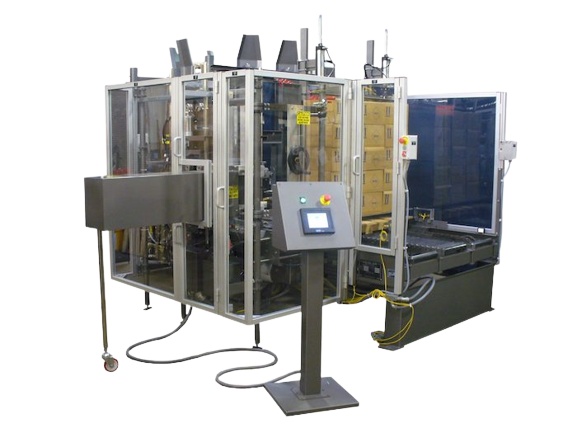

Drum / Case / Pail
Palletizer
In the process of pail palletizing, box palletizing, drum palletizing, or case palletizing, the containers are conveyed to the upstacker where they are column stacked from the bottom and pushed onto the loading platform.
Pallets are fed from the bottom of the hopper to beneath the loading platform, where a row of stacked pails and/or cases is then transferred onto the pallet. The pallet is then moved to the next position and the process is repeated until the pallet pattern is complete.
- Adjustable for both different size containers and pallets
- Speeds up to 22 containers per minute standard, with features available to reach 50 containers per minute
- Can run pails, drums, cases, and more on the same unit
- Compact footprint with less than 68 square feet of space
- Optional slip-sheet dispenser available
- Stainless steel & explosion proof construction available
Pail De-Palletizer
The De-Palletizing sequence starts by placing a full pallet of containers or pails on the infeed conveyor. Once the top tray and/or stretch wrap are removed, the pallet will arrive at the next station where a guide will contain the stacks of containers, and indexed one by one onto a conveyor until the pallet is empty.
- Adjustable for both different size containers and pallets
- High speed functionality, and limited involvement
- Up to 8 stacks per minute of 5 Gallon pails
- Optional slip-sheet remover and pallet stacker available once containers are removed
- Stainless steel & explosion proof construction available
- Designed to feed one of HEISLER’s automatic Pail Denesters
- Many alternative layouts available
Palletizer Support Guides
CONSISTENT PALLET LOAD SETUP
- Many variables and settings can affect the tightness of the pallet load, and the centering of the load on the pallet. This bulletin discusses proper criteria and setup, to ensure consistent pallet loading… Read More
